Progressive Stamping Die for Connector & Terminal Parts High Speed Progressive Stamping Die Precision Metal Hardware Stamping Tool mold for Connector Terminal Parts Automotive Components

Progressive Stamping Die for Connector & Terminal Parts

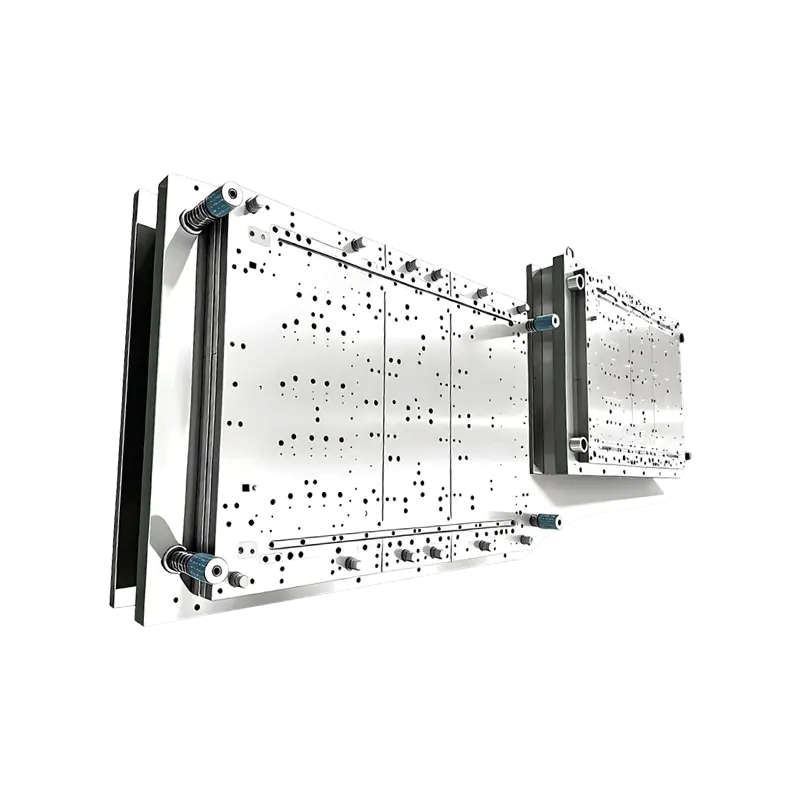

Our custom progressive stamping die is engineered for high-volume mass production of thin metal hardware. As a multi-station stamping tool, it completes piercing, bending, embossing and blanking sequentially along the metal strip in one press stroke. This die delivers consistent dimensional accuracy, stable high-speed running performance and ultra-long service life for electronic terminal, connector and automotive hardware parts.

High-precision Pilot Pin Positioning System
Adopts high-hardness pilot pins for strip positioning. Strictly controls cumulative pitch error, ensures repeatable part tolerance, avoids part shifting and rejects during continuous high-speed stamping.

Carbide Inserts for Long Service Life
Critical cutting and forming sections use tungsten carbide inserts. Combined with professional surface coating, it greatly reduces wear, burr and material pickup. The die can run stably at high SPM and extend tool life to tens of millions of shots.
Modular & Robust Die Structure

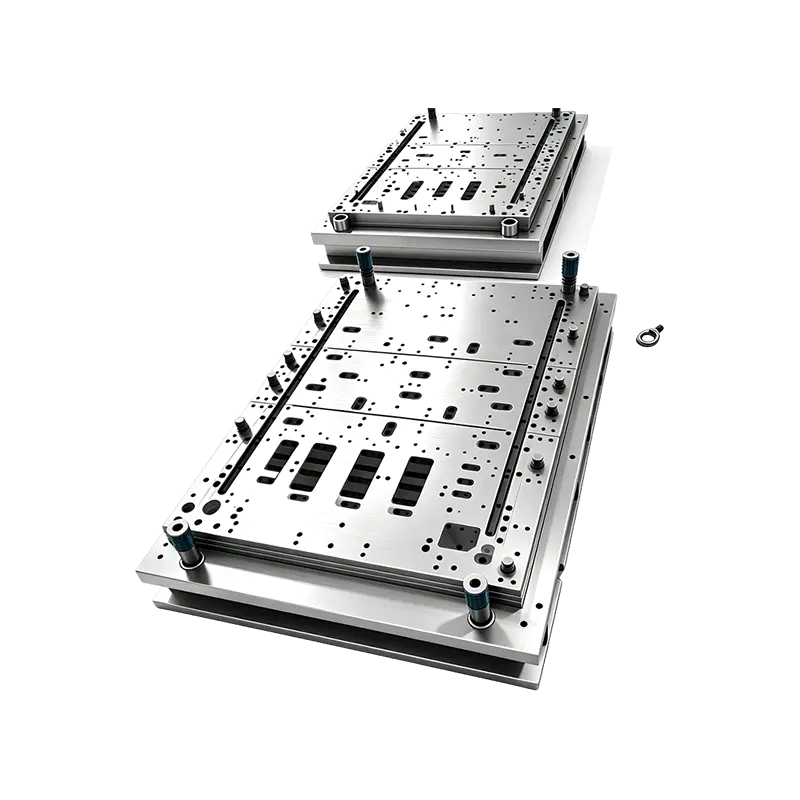

Rigid die base with 4-guide-pillar design ensures excellent parallelism and rigidity under long-time high-speed impact. Modular insert structure simplifies maintenance, replacement and on-site die repair, minimizing production downtime.

Comprehensive Multi-station Forming Capacity
Multiple working stations integrated in one single tool. Finish piercing, notching, bending, embossing, flanging and final blanking in sequence. Eliminates multiple separate stamping tools, reduces fixture cost and shortens production cycle.
Low Defect Rate & Stable Mass Production
Optimized scrap evacuation and anti-jam structure to prevent jumping scraps, strip warping and part deformation. Well suitable for continuous coil feeding and automated stamping production line.

Full Customization Service
We design and manufacture progressive dies according to your 2D/3D drawings, material specs, thickness, required SPM and tolerance requirements. We provide die design, machining, assembly, tryout, sample delivery and after-sales technical support.
This progressive stamping tool is widely applied to manufacture precision metal hardware parts:
Electronic connectors, terminals, spring contacts.
Automotive electrical hardware, sensor metal components.
Consumer electronics internal shielding sheets, shrapnel.
Power socket, relay, battery conductive metal parts.
Small precision metal stamping components.
